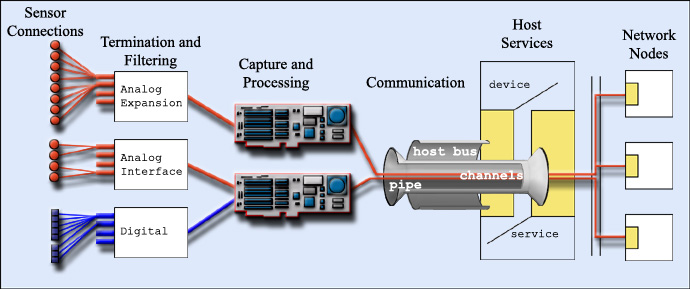

| Architecture Element |
Role |
| Signal Transfer |
Interface modules and cable kits help with connections that will preserve your signal quality. Or ask for drawings so that you can manufacture your own. |
| Interconnection |
The channel architecture supports multi-channel acquisition with an array of termination boards with filtering options. |
| Capture |
The Data Acquisition Processor captures data
and generates output signals autonomously, configured
and controlled by DAPL software. |
| Processing |
Independent tasks can run concurrently on
the DAP processor, selecting data intelligently,
reducing masses of samples to required information. |
| Transfer Bus |
DAP processing and bus interface electronics
buffer data and transfer data to the host intelligently,
maximizing the capacity of the interface bus. |
| Server |
Data are provided to applications at the
process level, so there is no direct interaction with
DAP or host hardware. |
| Host |
Use your own workstation systems,
or ready-to-run completely integrated packages that
cover all hardware down to the signal connections. |
| Network |
DAPs are addressable network resources. Use
your existing networking for remote access and data storage. |
