Data Acquisition (DAQ) Software
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Your tools for using onboard intelligence
Software for Data Acquisition Processor systems runs on both the Data Acquisition Processor itself and on the host PC.
DAPL, the onboard operating system, provides all the commands you need to run data acquisition and control applications.
Software, including DAPstudio, third-party, or custom software, that runs on the host PC – under a choice of operating systems – acts as the user interface for the Data Acquisition Processor, and provides disk logging and graphing capabilities.
Select one of the three DAPtools software distribution package levels – Basic, Standard, or Professional – to obtain the combination of software required to implement your application.
An Overview shows how the pieces of software included in each package fit together to build a complete system.
DAPtools Basic: All you need – including drivers – to run your application. Download Now
Each xDAP system, DAP board, or iDSC board purchased includes this package and all of these items.
- DAPL

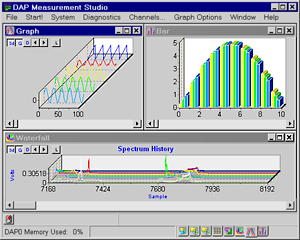

- DAP Measurement Studio (DAPstudio) (full-featured evaluation version)
- DAPlog Plus for Windows
- DSCview for Windows (for iDSC boards – with iDSC Delphi/C++Builder Component Interface)
- DSCview for Linux (for iDSC boards)
- DAPcell Basic Server: local DAP server for new Windows systems
- Accel32 local DAP server for Linux
- ACCEL driver for Linux
- DAPtools for Python
- DAPmem
- Full support for C++/C#/Delphi/VB/VB.NET development for DAP boards and iDSC boards using DLL calls
DAPtools Standard: Your tools for PC-side application development
This package provides all of the items in DAPtools Basic, plus filter generation software and drivers for third-party software.
- DAPcell Local Server
- Wave Synchronization Module (WSM)
- Time Base Synchronization Module (TBRESAMP)
- Anti-Aliasing Multichannel Module (AAMM)
- Rotational Machinery Analysis Module (ROTM)
- DAPL IIR Filter Module (DAPL IFM)
- (also available: free IIR-based IEC651 A-Weight Software)
- FGen for Windows 2.00
- DAPtools for LabVIEW
- DAPtools for MATLAB
DAPtools Professional: Your tools for advanced development
This package provides all of the items in DAPtools Standard, plus a full license for DAPstudio development software, full network support, and software for custom development for experienced programmers.
- DAP Measurement Studio (DAPstudio)
- DAPcell Server and Client Software for network use
- Developer's Toolkit for DAPL for custom command development by experienced programmers
Operating Systems
Data Acquisition Processor systems work with several PC operating systems. We currently support
- Windows 11 (32-bit or 64-bit)
- Windows 10 (32-bit or 64-bit)
- Windows 8 (32-bit or 64-bit)
- Windows 7 (32-bit or 64-bit)
- Windows XP (32-bit)
- Windows 2008 R2 and Windows 2008
- Windows 2003 and Windows 2000 (32-bit)
- Linux
Older software versions are available for legacy Windows systems.
- Accel32 for Windows NT, Windows ME, Windows 98, and Windows 95 (legacy 32-bit)
If you have an existing application using a DAP board under 16-bit Windows or DOS, Accel32/DAPcell provides emulation support that may allow you to run your application under Windows 2000 – or newer – with a PCI DAP board. Contact our technical support engineers or our sales department for assistance.
3rd-Party Software
Data Acquisition Processors work with industry standard software. We currently support
Other 3rd-party software vendors offer support for Microstar Laboratories hardware.
