DAP 1200a

Obsolete

The DAP 1200a is now Obsolete. For higher performance at a lower cost, upgrade your system for one of the PCI-bus DAP boards: the DAP 4000a.

If you need spare parts for a DAP 1200a system, compatible items are available.

Download PDF Manual

The DAP 1200a is an excellent choice for applications where there is a need for real-time triggering, averaging, control, interpolation or a host of other functions, but no special high-speed requirements for FFTs or complex digital filtering.

The DAP 1200a:

has an onboard Intel 80C186XL 16-MHz or 20-MHz processor
is compatible with other a-Series boards
works with the AT ISA bus for 286/386/486/Pentium PC platforms
transfers data at high rates: up to 312K samples per second
allows fast real-time processing
offers low latency -- 1 ms per task -- for fast response
samples analog or digital inputs at rates up to 312K samples per second
updates analog outputs at rates up to 312K samples per second each
updates digital outputs at rates up to 312K samples per second
has expandable analog and digital inputs and outputs
complies with the EMC Directive 89/336/EEC

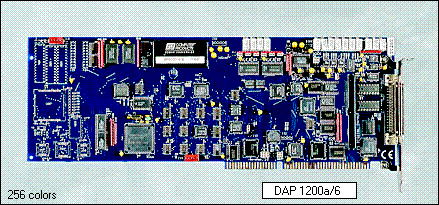

There is one DAP 1200a model: the DAP 1200a/6.

The DAP 1200a/6 is compatible with other a-Series boards and may be exchanged with them in any configuration.

DAP 1200a/6 Specifications:

General Specifications
Dimensions : 13.33 inches x 4.8 inches
Weight : 9.9 oz
Power requirements : +5V, 2.3 Amps
Operating temperature : 0-50 degrees Celsius
Accuracy of crystal clocks : 50 parts per million
Type of A/D converter : Successive Approximation

Input Analog Inputs : 16
Expandable to : 512
Voltage Ranges : -0 to +5 volts, -5 to +5 volts, -10 to +10 volts
Samples(x 1000) per second* : 312
Time increment (nanoseconds) : 200
Maximum Gain** : 500
ADC Resolution (bits) : 12
Digital Inputs (synchronous) : 16
Expandable to : 128
Samples (x 1000) per second : 312

Output
Analog Outputs : 2
Expandable to : 66
Voltage Ranges : -0 to +5 volts, -5 to +5 volts, -10 to +10 volts
Updates (x1000) per second per onboard channel : 312
DAC Resolution (bits) : 12
Digital Outputs : 16
Expandable to : 1024
Updates (x1000) per second : 312

Microprocessor
Type : 80C186XL
Clock Speed(MHz) : 20
Onboard Operating System : DAPL
DRAM (Kbytes) : 1 Mbyte

PC Interface Specifications
PC Interface : Dual 1024-byte high-speed FIFO
PC Transfer Mode : I/O Interrupt
Buffers : 2
Samples (x1000) transferred per second*** : 312

DSP
Onboard emulation : yes

* Crystal-controlled, with 12-bit A/D resolution
** Top sampling speeds are available only with gain=1. Gains of 10, 100, and 500 are also available.
*** Benchmarked rates vary with PC platform.

Obtain additional information from Technical Note 202: Technical Product Information for the DAP1200a (51K PDF file).
